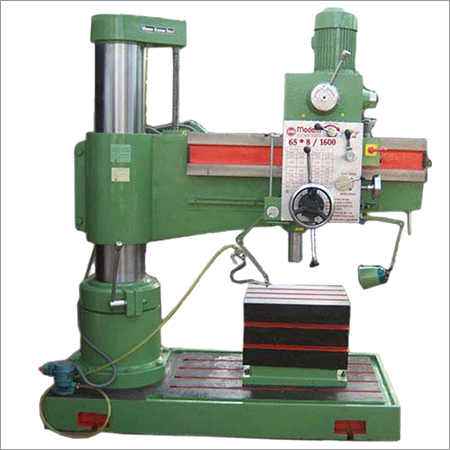

75mm all Geared Radial Drilling Machine

Get a Price/Quote

MOQ : 1 Unit

75mm all Geared Radial Drilling Machine Specification

Frequency
50 Hz

Noise Level
Low Noise Operation

Features
Robust All-geared Construction, Precision Ground Gears, 360 radial arm rotation, Variable Spindle Speeds, Heavy-duty Design

Condition
New

Motor Power
5 HP

Diameter
Maximum Drilling Diameter 75 mm

Table Size
600 mm x 500 mm

Cutting Area
Up to 75 mm in diameter

Machine Type
All Geared Radial Drilling Machine

Spindle Speed
60 - 1500 RPM (Variable in steps)

Product Type
Drilling Machine

Material
Stainless Steel & Cast Iron

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Geared Mechanical Control

Voltage
415 Volt (v)

Power
5 HP

Power Source
Electric

Weight (kg)
Approximately 2500 kg

Dimension (L*W*H)
2500 mm x 1100 mm x 3200 mm

Capacity
Drilling up to 75 mm diameter in steel

Color
Green/Grey (as per image)

Usage & Applications
Industrial Drilling, Metalworking, Heavy Fabrication

75mm all Geared Radial Drilling Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
5 Units Per Month

Delivery Time
1 Week

Packaging Details
Gunny Bag, Pallet & Wooden Box.

Main Export Market(s)
Western Europe, Middle East, Central America, Eastern Europe, South America, Asia, North America, Australia, Africa

Main Domestic Market
All India

About 75mm all Geared Radial Drilling Machine

With the support of our experts and sophisticated in-house facilities, we manufacture & supply 75mm all geared radial drilling machine. The offered drilling machine is assembled by utilizing finest quality components under the guidance of our experts at our well equipped production unit. Our 75mm all geared radial drilling machine is well known for features such as durable, low power consumption, easy to operate, best mother machines, best quality ground finish parts and so on.

Features

Panel Board for Centralized electrical Controls and Limit Switches
Robust structure
Longer functional life
Reliable to install

Technical Data

Specification :

Capacity :
Capacity	75mm
Driling Capacity in Solid :
In Steel having 600Mpa Tensile Strength	75mm
In Cast Iron having 180BHN	85mm
Tapping Capacity :
Metric Threads up to size [MM]	48 X 3
Any Other Threads [Inch]	1 3/4 Fine Pitch
Boring in Steel :
Boring in Steel	160mm
Drilling in Head :
Taper in Spindle -[Nose]	MT-6
Spindle travels [Auto/Manual]	325mm
No. of Spindle Speeds/Range	16/40 2000 RPM
No. of Auto Feeds	4/0.10 0.25
Working Range :
Max Drilling Radius	500/1800
Max Distance between Base Plate to Spindle [Spindle Retracted]	500/1400
Max Drilling Head Traverse	1350MM
Rotation of Arm [Both Side]	0-180 Deg.
Electrical:
Power Supply	415V, 3 PHASE, 50Hz
Drilling Head Two Speed Motor	7.5HP
Arm Elevating Motor	3HP
Base Plate:
Working surface: L x W	1680 x 1060
No. of T Slots & Nominal size	4/22
Weight with Electrical & Standard Accessories-APPROX (Net/Cross)	5000/5500Kg
Wooden Box Packing Dimension: L x W x H
Wooden Box Packing Dimension	600 x 500 x 500
Box Table Size: L x H x W:
Box Table Size	600 x 500 x 500
Colors:
Colors	Maan Green Special

Precision Engineering for Heavy-Duty Applications

This radial drilling machine stands out for its all-geared construction and precision-ground gears, ensuring reliable and accurate performance even during demanding industrial tasks. The robust design supports heavy fabrication, metalworking, and large-scale drilling operations, making it suitable for manufacturing environments where consistency and strength are vital.

Flexible and Efficient Operation

With an arm length of 2000 mm and 360 radial arm rotation, this drilling machine provides excellent reach and maneuverability. The variable spindle speeds (812 options, depending on model), feed range of 0.101.00 mm/rev, and adjustable table size offer flexibility for users handling different workpieces. The inbuilt coolant system and low noise operation further enhance workplace efficiency and comfort.

FAQs of 75mm all Geared Radial Drilling Machine:

Q: How does the 75mm all Geared Radial Drilling Machine benefit industrial drilling operations?

A: This machine delivers robust construction, variable spindle speeds, and precise control, enabling efficient, accurate drilling up to 75 mm diameter in steel. Its heavy-duty design and semi-automatic mechanism ensure durability and productivity in industrial environments.

Q: What materials can be drilled using this radial drilling machine?

A: The machine is engineered for drilling steel as well as other metals, thanks to its stainless steel and cast iron build, powerful 5 HP motor, and variable speed control. It is suitable for industrial metalworking and heavy fabrication tasks.

Q: When is it ideal to use this machine instead of conventional drilling equipment?

A: This machine is best used when high precision, large workpiece handling, heavy-duty drilling, and gear-driven accuracy are requiredespecially in manufacturing, fabrication facilities, and workshops dealing with large components.

Q: Where can I purchase or source the 75mm all Geared Radial Drilling Machine in India?

A: The machine is available from multiple channels, including dealers, distributors, exporters, manufacturers, retailers, suppliers, traders, and wholesalers across India. Check with authorized sellers for warranty and after-sales support.

Q: What process does the machine use to achieve precision drilling?

A: The machine employs all-geared mechanical control with 812 spindle speed options, a precision feed range, and a rigid arm mechanism. These features, along with a smooth motor output and optimized gear transmission, provide precise and efficient drilling results.

Q: How user-friendly is the control system for operators?

A: The control system is geared mechanical, allowing operators to easily adjust spindle speeds and drill feeds. The semi-automatic grade streamlines operation while maintaining user control over crucial parameters.

Q: What usage applications are best suited for this radial drilling machine?

A: It excels in industrial drilling, metalworking, and heavy fabricationespecially for tasks requiring variable speeds, precision gear control, and large-area drilling. Its robust build and advanced features support demanding applications in modern manufacturing.
