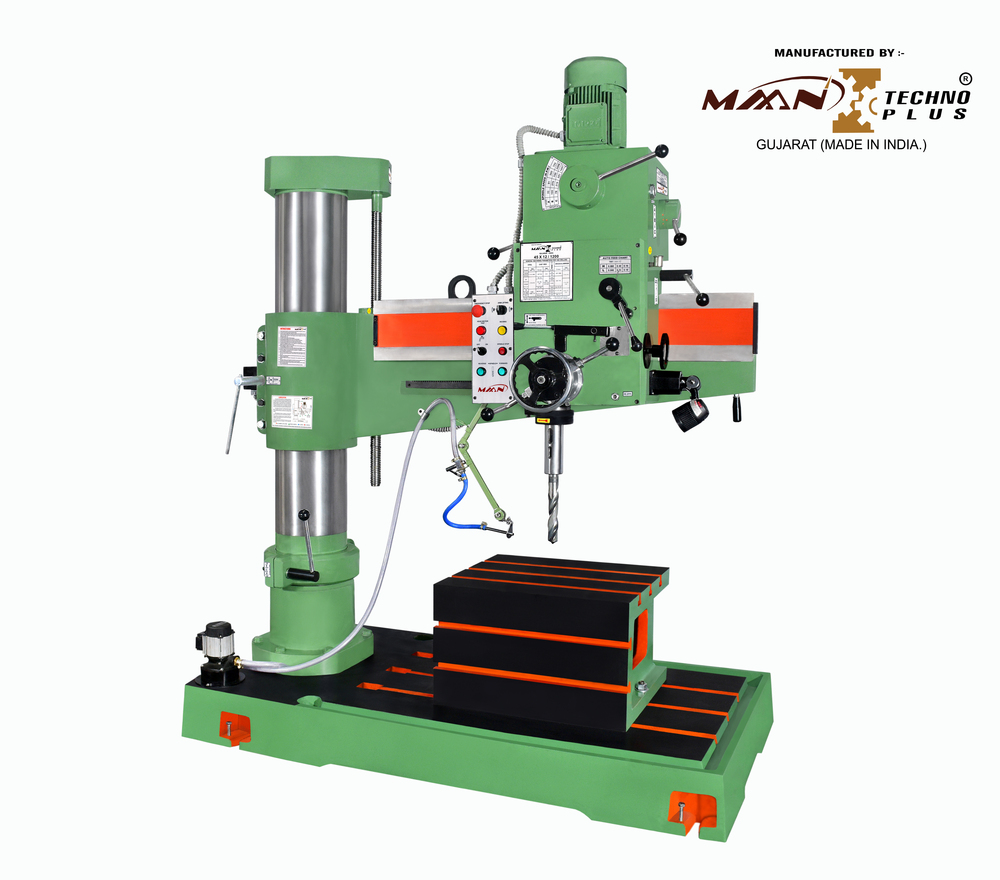

45mm All geared auto feed radial drilling machine

Send Inquiry

Request To Call Back

45mm All geared auto feed radial drilling machine

Name: 45mm All geared auto feed radial drilling machine
Brand: MAAN TECHNOPLUS
Price: 800000 INR
Availability: InStock

Price 800000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

45mm All geared auto feed radial drilling machine Specification

Motor Power
3 HP

Condition
New

Noise Level
Low

Dimension (L*W*H)
2000 x 900 x 2500 mm

Spindle Speed
8 Steps, 62 - 2000 RPM

Diameter
45 mm (Max Drilling Diameter)

Machine Type
Radial Drilling Machine

Features
All Geared Head, Auto Feed, Heavy Duty Construction, Adjustable Arm

Cutting Area
Variable-up to 45 mm Dia

Frequency
50 Hz

Table Size
500 x 500 mm

Product Type
All Geared Auto Feed Radial Drilling Machine

Material
Cast Iron, Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
Normal

Control System
Manual

Voltage
415 V

Power
2.2 kW

Power Source
Electric

Weight (kg)
Approximately 1800 kg

Capacity
45 mm Drilling Capacity

Color
Green & Silver

Usage & Applications
Drilling, Tapping, Boring in Metalworking and Engineering Industries

Max Distance Spindle to Base
1100 mm

Lifting Motor
0.5 HP

Column Diameter
210 mm

Arm Rotation
360 Degrees

Drilling Radius
350 to 1460 mm

Number of Spindle Speeds
8

Base Plate Size
1700 x 900 mm

Spindle Feed
0.05/0.09/0.15 mm/rev

Spindle Taper
MT4

Coolant Pump
0.15 HP

Max Distance Spindle to Table
800 mm

Spindle Travel
250 mm

45mm All geared auto feed radial drilling machine Trade Information

Minimum Order Quantity
1 Piece

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About 45mm All geared auto feed radial drilling machine

Introducing the 45mm All Geared Auto Feed Radial Drilling Machine - a scarce opportunity to own a sublime engineering marvel at the lowest price. This machine, remarked for its gorgeous green & silver finish, boasts a robust construction of cast iron and steel. Utilise the offer and experience a drilling radius of 350-1460 mm, 8 spindle speeds (62-2000 RPM), and auto feed capability. Ideal for metalworking, tapping, and boring, its manual control system and adjustable arm enhance versatility and efficiency for any workshop.

Versatile Machine for Diverse Industries

The 45mm All Geared Auto Feed Radial Drilling Machine shines in plant applications, supporting both specific and general use cases across metalworking and engineering sectors. From fabricators to large-scale industrial units, this machine accommodates drilling, tapping, and boring tasks with remarkable precision. Its adjustable arm and high drilling capacity make it indispensable in manufacturing, automotive, construction, and maintenance workshops, delivering consistent performance and reduced downtime in daily operations.

Comprehensive Packaging & Shipping Solutions

Every 45mm All Geared Auto Feed Radial Drilling Machine is meticulously packaged to ensure safe drop-off at your facility. Shipped from leading Indian ports, the delivery process emphasizes minimal expenditure for the client. The machines arrive with mandatory certifications, underscoring quality and compliance. Excellent packaging safeguards against transit damage, giving peace of mind whether you are a dealer, supplier, or exporter handling bulk or single-unit orders.

FAQ's of 45mm All geared auto feed radial drilling machine:

Q: How does the auto feed feature benefit the drilling process?

A: The auto feed mechanism enables smoother and more consistent drilling by automatically advancing the spindle, which improves precision, reduces operator fatigue, and accelerates workflow, particularly during repetitive or large-volume drilling tasks.

Q: What are the recommended application areas for this radial drilling machine?

A: This machine is optimally used in metalworking and engineering industries, including fabrication plants, maintenance workshops, automotive manufacturing, and construction sites where reliable and heavy-duty drilling, tapping, and boring are required.

Q: When should the spindle speeds be adjusted during operation?

A: Spindle speeds should be changed based on the material being worked on and the diameter of the drill bit. Lower speeds are preferable for hard materials or larger drill bits, while higher speeds suit softer materials or smaller bits.

Q: Where is the machine typically shipped from, and what are the associated certifications?

A: The machine is shipped from major Indian ports and arrives with all necessary certifications ensuring compliance with quality and safety standards. This guarantees reliable performance and adherence to international export requirements.

Q: What packaging steps are taken to protect the machine during shipping?

A: Specialized packaging materials and techniques are utilized to secure the machine during transport. Careful attention is given to safeguard components against impact and vibration, ensuring the machine arrives in pristine, working condition.

Q: How should the machine be maintained to preserve its sublime performance?

A: Regular maintenance involves lubrication of moving parts, inspection of the spindle and gears, and checking of electrical connections. Keeping the workstation clean and following manufacturer guidelines ensures continued high performance.
