All Geared Radial Drilling Machine

About All Geared Radial Drilling Machine

Radial Drill Machine

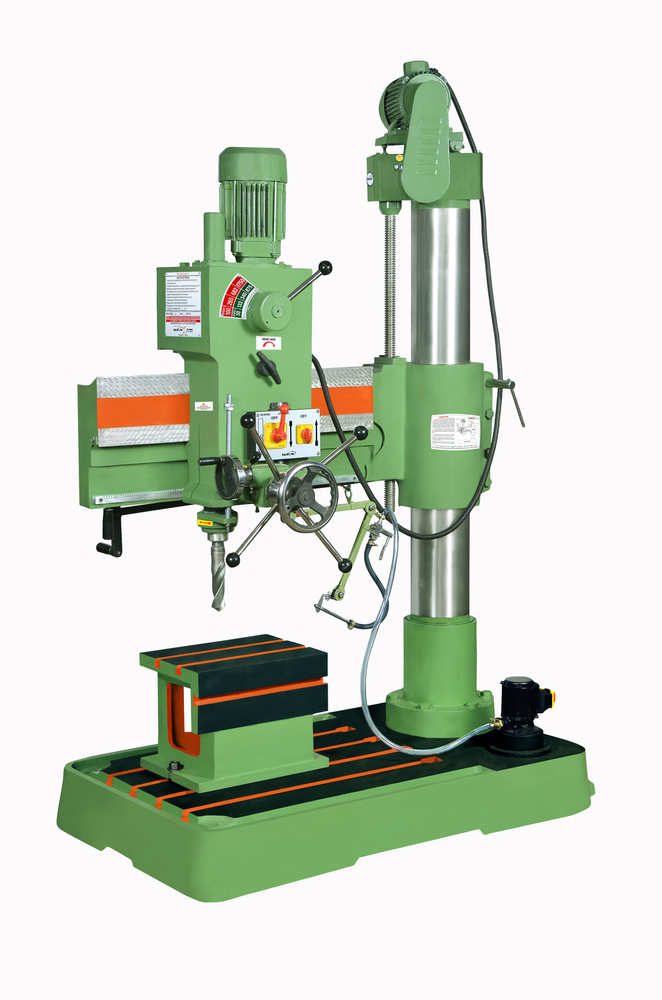

Radial Drill Machine HRD100X31

A Radial Drill Machine is a powerful and flexible industrial drilling tool with an adjustable radial arm that moves along a vertical column allowing the drill head to be positioned over large or heavy workpieces at various angles and distances Key components include a rotating drill head a vertical column a horizontal arm radial arm that moves the head and a base This design facilitates versatile operations like drilling boring reaming and tapping across materials such as metals plastics and wood making it essential for construction fabrication shops and maintenance

Key Features and Components

Radial Arm

The defining feature it extends from the column and allows the drill head to move horizontally and at different angles enabling access to a large area of the workpiece

Column

A central vertical column supports the entire arm and drill head

Drill Head

The geared electric drill head contains the spindle which performs the cutting action

Spindle

A component that rotates and moves vertically to the workpiece to perform the drilling operation

Motor

Highperformance motors power the drill head and also operate the elevating mechanism for the arm

How it Works

Positioning The radial arm can be raised or lowered on the column

Movement The drill head moves along the length of the radial arm

Operation The spindle rotates to drill into the material

Flexibility This combination of movements allows the operator to position the drill head precisely over any point on a large stationary workpiece

Applications

Drilling Creating holes for various purposes such as in steel beams for construction

Boring Enlarging existing holes

Reaming Finishing holes to achieve higher precision and a smooth surface

Tapping Creating internal threads within a hole

Benefits

Versatility Can handle different machining processes on a single workpiece

Large Workpieces Ideal for handling large heavy and complex parts that are difficult to move to a standard drill press

Precision Provides precise control over drilling depth and speed

Technical Details

Precision and Performance

Built for accuracy, the All Geared Radial Drilling Machine utilizes a rigid construction and precision transmission system. With a vertical arm travel of 770 mm and a maximum drilling radius of 1400 mm, users benefit from flexibility and consistent results on a wide array of components. Its low noise operation and automatic feed further enhance productivity and user comfort.


Versatile Industrial Application

Suitable for metalworking, industrial drilling, and workshop machining, this machine excels in environments demanding reliability and adaptability. Its capacity for up to 50 mm drilling in steel, along with both manual and auto-feed capabilities, makes it the ideal choice for dealers, manufacturers, exporters, and more within the Indian industrial sector.
