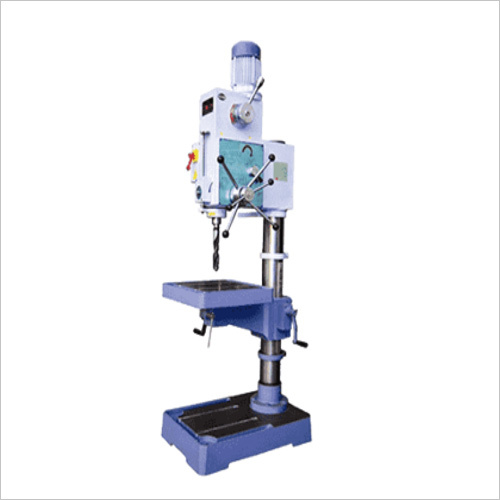

50mm All Geared Heavy Duty Pillar Drilling Machine

Get a Price/Quote

50mm All Geared Heavy Duty Pillar Drilling Machine Specification

Machine Type
Pillar Drilling Machine

Diameter
50mm

Noise Level
Low

Dimension (L*W*H)
Standard

Table Size
Standard

Condition
New

Spindle Speed
Variable

Features
Heavy Duty Accurate Drilling

Motor Power
1 HP

Frequency
50 Hz

Product Type
Drilling Machine

Material
Metal

Computerized
Non-Computerized

Automatic Grade
Automatic

CNC Or Not
Not CNC

Control System
Geared System

Voltage
220-240V

Power
1 HP

Power Source
Electric

Weight (kg)
Approx 150 kg

Capacity
50mm

Color
Blue

Usage & Applications
Industrial Drilling Applications

About 50mm All Geared Heavy Duty Pillar Drilling Machine

Specification

Approxly Weight	1700 Kg.
Column Diameter	150 mm
Column Length	1470 mm
Distance Spindle to Base	Max. 1030 mm
Distance Spindle to Table	Max. 560 mm
Machine Base	825 X 525 X 150 mm
Number of Power Feeds	0.01 / 0.02
Size of Working Table	500 X 500 mm
Spindle Center to Column	357 mm
Spindle Speed	1760 RPM
Spindle Traveling	250 mm
Taper In Spindle	MT 4 (Morse)
Model Name/Number	50 X 8/360
Drilling Diameter	50 mm in MS

Engineered for Industrial Performance

Designed specifically for industrial drilling applications, this pillar drilling machine combines heavy-duty construction with accurate drilling capabilities. Its robust metal body and standard dimensions make it a fit for demanding environments, ensuring reliability and safety for continuous operations.

Versatile Control and Operation

Equipped with an all-geared system and variable spindle speeds, users benefit from precise control over drilling processes. Its automatic grade operation provides ease of use, while the non-computerized design ensures straightforward maintenance and operation without the need for specialized training.

Dependable Power and Efficiency

Powered by a 1 HP electric motor, the machine provides consistent performance with a low noise output. The 50mm drilling capacity allows handling of a wide range of materials, catering to manufacturers, retailers, and wholesalers seeking reliable and efficient drilling solutions.

FAQs of 50mm All Geared Heavy Duty Pillar Drilling Machine:

Q: How is the 50mm All Geared Pillar Drilling Machine operated?

A: This machine uses a geared system and is powered by an electric source (220-240V). Its operation is automatic, requiring minimal manual intervention for setup and adjustments.

Q: What materials can be drilled using this machine?

A: The heavy-duty nature and 50mm drilling capacity make it suitable for working with a variety of metals and other industrial-grade materials.

Q: When is this drilling machine best suited for use?

A: It is ideal for continuous, high-precision industrial drilling operations in manufacturing, fabrication, or workshops needing reliable and accurate performance.

Q: Where can this machine be installed in a facility?

A: With its standard size and durable design, it can be installed on shop floors, in manufacturing units, or workshops with access to a standard electric supply.

Q: What is the process of maintaining this pillar drilling machine?

A: Routine maintenance includes regular cleaning, checking the geared system for lubrication, and periodic inspection of electrical connections to ensure consistent operation.

Q: How does the variable spindle speed benefit users?

A: Adjustable spindle speed enables users to optimize drilling performance for different materials and thicknesses, improving accuracy and prolonging tool life.

Q: What are the main benefits of using this machine for industrial applications?

A: Key advantages include heavy-duty accurate drilling, low operational noise, efficiency, and ease of use, making it valuable for dealers, distributors, manufacturers, and other industrial stakeholders.
