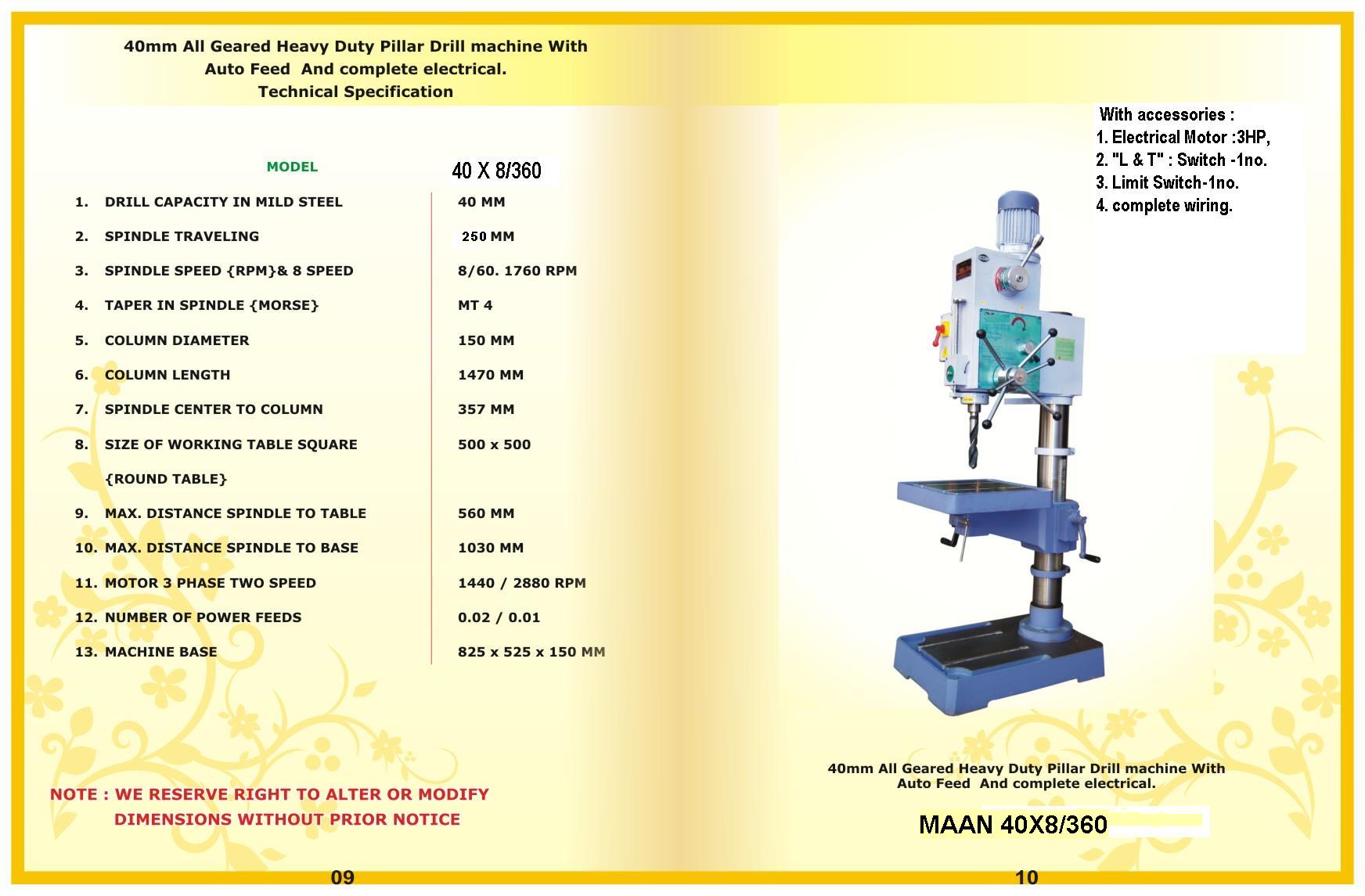

Pillar Drill Machine

• Automatic Grade
• Semi-Automatic

• Capacity
• 40 mm Drilling

• Color
• Blue & Silver

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual

• Cutting Area
• Up to 40 mm diameter

• Diameter
• 40 mm

• Dimension (L*W*H)
• 950 x 670 x 2150 mm

• Features
• Heavy duty geared drive, Accurate drilling, Rigid construction

• Frequency
• 50 Hz

• Machine Type
• All Geared Heavy Duty Pillar Drill

• Material
• Cast Iron

• Motor Power
• 1.5 kW

• Noise Level
• Low

• Power
• 2 HP

• Power Source
• Electric

• Product Type
• Pillar Drill Machine

• Spindle Speed
• 85 2150 RPM (8 or 12 steps)

• Table Size
• 425 x 425 mm

• Usage & Applications
• Industrial metal & wood drilling

• Voltage
• 220 Volt (v)

• Weight (kg)
• 550 kg

• Automatic Grade
• Semi-Automatic

• CNC Or Not
• Other, No

• Capacity
• Up to 25 mm in Steel

• Color
• Blue-Grey

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual

• Cutting Area
• Varies as per job

• Diameter
• Max. drilling diameter 25 mm

• Dimension (L*W*H)
• 920 x 530 x 1700 mm

• Features
• Rigid box column, high precision spindle, adjustable table, low maintenance

• Frequency
• 50 Hz

• Machine Type
• Manual Drilling Machine

• Material
• Cast Iron

• Motor Power
• 0.75 kW

• Noise Level
• Low

• Power
• 1 HP

• Power Source
• Electric

• Product Type
• Drill Machine

• Spindle Speed
• 70-3220 RPM (Variable)

• Table Size
• 400 mm x 400 mm

• Usage & Applications
• Industrial drilling works, workshop and fabrication jobs

• Voltage
• 415 Volt (v)

• Weight (kg)
• Approx. 250 kg

• Automatic Grade
• Automatic

• Capacity
• 25 mm Ton

• Color
• Blue and White

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual

• Diameter
• 25 mm Perch

• Dimension (L*W*H)
• Not Available Perch

• Features
• All Geared Auto Feed

• Frequency
• 50 Hz Milihertz

• Machine Type
• Pillar Drill Machine

• Material
• Metal

• Motor Power
• 1 HP Volt-Ampere (VA)

• Noise Level
• Not Available db

• Power
• 1 HP Teraampere (TA)

• Power Source
• Electric

• Product Type
• Drill Machine

• Spindle Speed
• Available in Multiple Options km/m

• Usage & Applications
• Industrial Drilling

• Voltage
• 220V Statampere (sA)

• Weight (kg)
• Approx. 100 Kg Long Ton

• Automatic Grade
• Semi-Automatic

• CNC Or Not
• Other, No

• Capacity
• 50 mm Drilling Capacity

• Color
• Machine Grey / Blue

• Computerized
• No

• Condition
• New

• Control System
• Other, Gear Operated Mechanical

• Cutting Area
• Up to 50 mm Dia

• Diameter
• Up to 50 mm

• Dimension (L*W*H)
• 1050 x 650 x 2200 mm

• Features
• Heavy-duty construction, High precision, Smooth operation, Gear driven

• Frequency
• 50 Hz

• Machine Type
• Semi All Geared Pillar Drill

• Material
• Cast Iron

• Motor Power
• 2 HP / 1440 RPM

• Noise Level
• Low

• Power
• 2 - 4 HP

• Power Source
• Electric

• Product Type
• Pillar Drill Machine

• Spindle Speed
• 8 / 16 Steps, 65-2000 RPM

• Table Size
• 420 x 420 mm

• Usage & Applications
• Drilling, Tapping, Reaming, Boring in metal and allied industries

• Voltage
• 220-380 Volt (v)

• Weight (kg)
• 950 kg (approx)

• Automatic Grade
• Manual

• CNC Or Not
• Not CNC, Other

• Capacity
• 25mm

• Color
• Green

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual

• Diameter
• 25mm

• Dimension (L*W*H)
• 750 x 400 x 1500 mm

• Features
• All Geared Mechanism High Precision

• Frequency
• 50 Hz

• Machine Type
• Pillar Drilling Machine

• Material
• Cast Iron Body

• Motor Power
• 1 HP

• Noise Level
• Low

• Power
• Single Phase

• Power Source
• Electric

• Product Type
• All Geared Pillar Drilling Machine

• Spindle Speed
• Multiple Speed Ranges

• Table Size
• 255 x 255 mm

• Usage & Applications
• Drilling operations in workshops and factories

• Voltage
• 220-240 V

• Weight (kg)
• 145 kg

• Automatic Grade
• Manual

• CNC Or Not
• Other, Not CNC

• Capacity
• Heavy Duty

• Color
• White

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual

• Diameter
• Variable based on drill bits

• Dimension (L*W*H)
• Compact

• Features
• Adjustable table height Precision drilling

• Frequency
• 50 Hz

• Machine Type
• Pillar Drilling Machine

• Material
• Cast Iron

• Motor Power
• 0.5 HP - 2 HP

• Noise Level
• Low

• Power
• Electric-powered

• Power Source
• Electric

• Product Type
• Drilling Machine

• Spindle Speed
• Variable typically 400-2000 RPM

• Table Size
• 300 mm x 300 mm

• Usage & Applications
• Industrial drilling applications

• Voltage
• 220V - 240V

• Weight (kg)
• Approx. 150 kg

• Automatic Grade
• Semi-Automatic

• CNC Or Not
• Other, No

• Capacity
• Up to 50 mm Drilling in Steel

• Color
• Standard Machine Grey/Blue

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual

• Cutting Area
• Variable, depending on arm traverse

• Diameter
• Max 50 mm

• Dimension (L*W*H)
• 2200 x 900 x 2600 mm

• Features
• All Geared Transmission, Automatic Feed, High Accuracy, Heavy Duty, Rigid Construction

• Frequency
• 50 Hz

• Machine Type
• Precision Radial Drill

• Material
• Cast Iron, Mild Steel

• Motor Power
• 3 HP

• Noise Level
• Low

• Power
• 3 HP

• Power Source
• Electric

• Product Type
• All Geared Radial Drilling Machine

• Spindle Speed
• 8 Steps, 60-1450 RPM

• Table Size
• 500 x 500 mm

• Usage & Applications
• Metalworking, Industrial Drilling, Workshop Machining

• Voltage
• 415V

• Weight (kg)
• Approx 1600 kg

• Automatic Grade
• Semi-Automatic

• CNC Or Not
• Normal

• Capacity
• 45 mm Drilling Capacity

• Color
• Green & Silver

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual

• Cutting Area
• Variable-up to 45 mm Dia

• Diameter
• 45 mm (Max Drilling Diameter)

• Dimension (L*W*H)
• 2000 x 900 x 2500 mm

• Features
• All Geared Head, Auto Feed, Heavy Duty Construction, Adjustable Arm

• Frequency
• 50 Hz

• Machine Type
• Radial Drilling Machine

• Material
• Cast Iron, Steel

• Motor Power
• 3 HP

• Noise Level
• Low

• Power
• 2.2 kW

• Power Source
• Electric

• Product Type

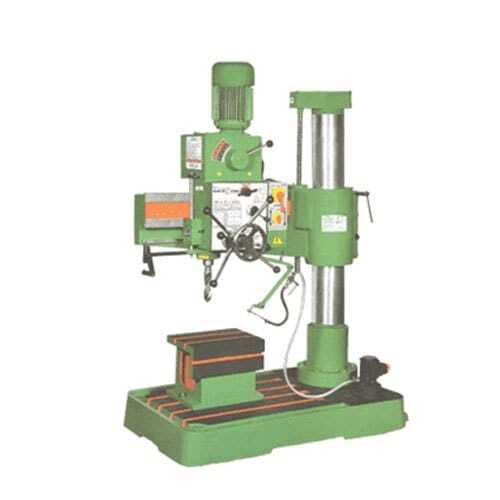

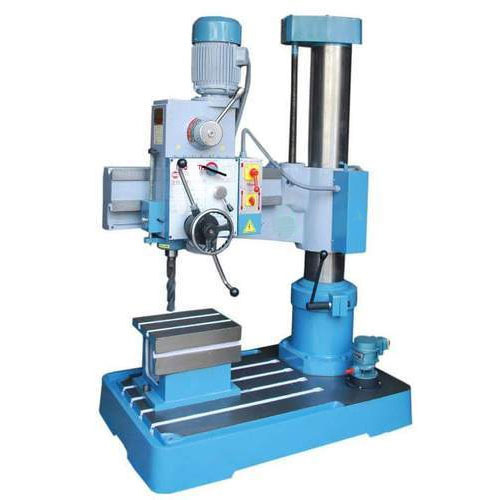

• All Geared Auto Feed Radial Drilling Machine

• Spindle Speed
• 8 Steps, 62 - 2000 RPM

• Table Size
• 500 x 500 mm

• Usage & Applications
• Drilling, Tapping, Boring in Metalworking and Engineering Industries

• Voltage
• 415 V

• Weight (kg)
• Approximately 1800 kg

• Automatic Grade
• Automatic

• CNC Or Not
• Other, Not CNC

• Capacity
• Drilling up to 50 mm

• Color
• Machine Green / Standard

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual & Electrical

• Cutting Area
• Varies with operation; typically up to 50 mm diameter

• Diameter
• Max drilling 50 mm

• Dimension (L*W*H)
• 2200 x 900 x 2500 mm

• Features
• High Rigidity, All Geared, Auto Feed, Smooth Operation, Heavy Duty

• Frequency
• 50 Hz

• Machine Type
• Radial Drilling Machine

• Material
• Cast Iron and Mild Steel

• Motor Power
• 2.2-3 kW

• Noise Level
• Low

• Power
• 3 HP

• Power Source
• Electric

• Product Type

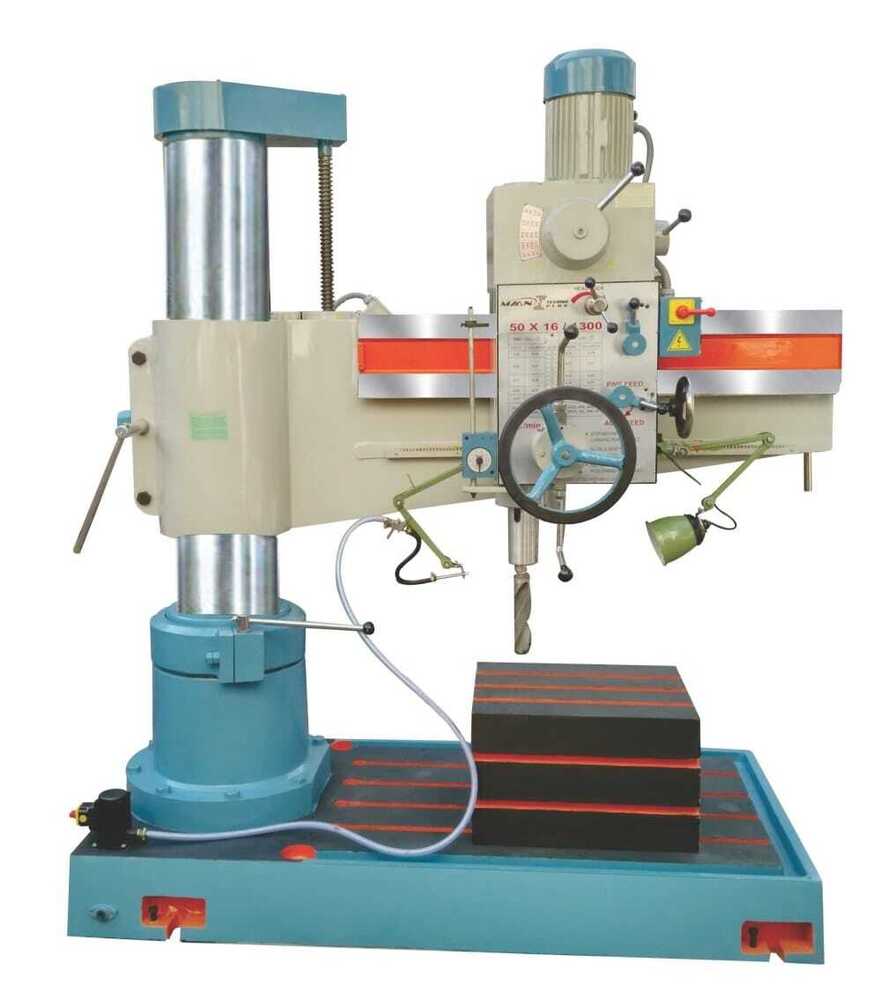

• All Geared Auto Feed Radial Drilling Machine

• Spindle Speed
• 8 Steps, 62 - 2000 rpm

• Table Size
• 500 x 500 mm (Main Table) & 400 x 400 mm (Base Table)

• Usage & Applications
• Used for Drilling, Boring, Reaming and Tapping in Engineering Industries, Fabrication Shops, Workshops

• Voltage
• 415 V

• Weight (kg)
• 1800 kg

• Automatic Grade
• Semi-Automatic

• CNC Or Not
• Other, No

• Capacity
• 75 mm drilling in steel

• Color
• Industrial Blue/Gray as per manufacturer standard

• Computerized
• No

• Condition
• New

• Control System
• Other, Manual Gear & Lever Control

• Cutting Area
• Large, suited for heavy jobs

• Diameter
• 75 mm (maximum drilling diameter in steel)

• Dimension (L*W*H)
• 2300 x 1100 x 3250 mm

• Features
• High precision, Rigid construction, All geared head, Long arm travel, Easy to operate

• Frequency
• 50 Hz

• Machine Type
• Double Column Radial Drilling Machine

• Material
• Heavy-duty Cast Iron & Steel

• Motor Power
• 5 HP main motor

• Noise Level
• Within permissible industrial limits

• Power
• 5 - 7.5 kW

• Power Source
• Electric

• Product Type
• All Geared Double Column Radial Drilling Machine

• Spindle Speed
• 12 Steps, 30 to 1500 rpm

• Table Size
• 700 x 560 mm (approx.)

• Usage & Applications
• Industrial Drilling, Fabrication Shops, Heavy Engineering workshops

• Voltage
• 415 V

• Weight (kg)
• Approx. 5000 kg
