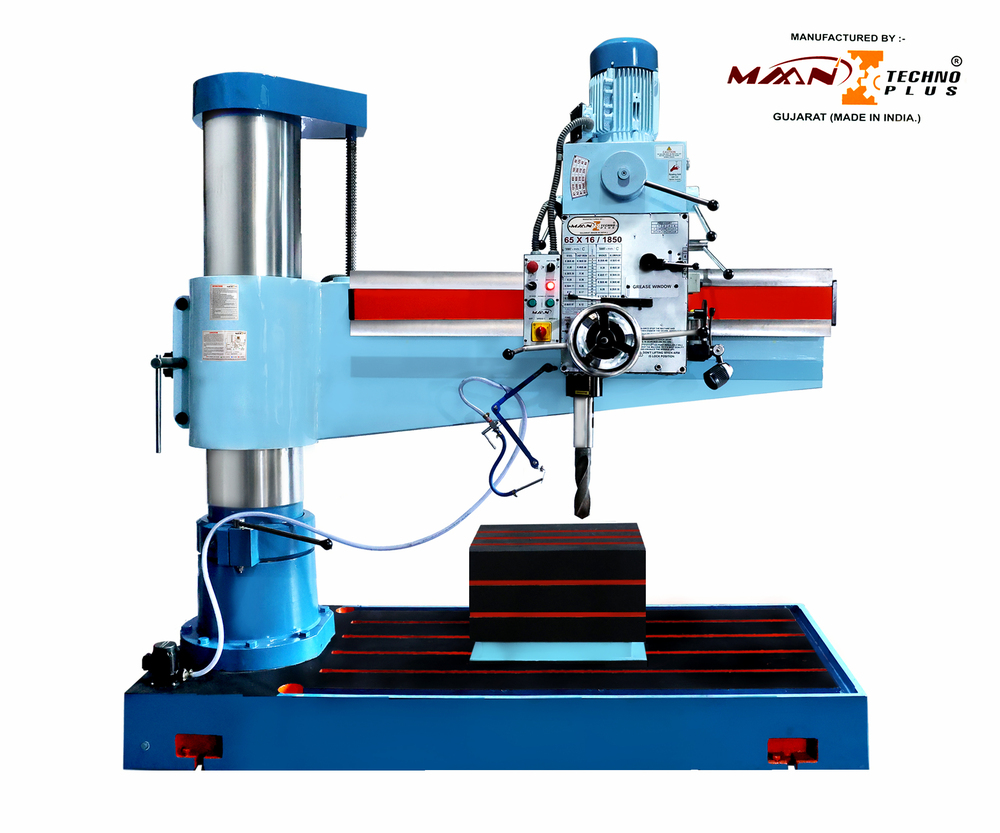

75mm All geared Double column radial drilling machine

Name: 75mm All geared Double column radial drilling machine
Brand: MAAN TECHNOPLUS
Price: 3500000 INR
Availability: InStock

Price 3500000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

75mm All geared Double column radial drilling machine Specification

Spindle Speed
12 Steps, 30 to 1500 rpm

Table Size
700 x 560 mm (approx.)

Cutting Area
Large, suited for heavy jobs

Features
High precision, Rigid construction, All geared head, Long arm travel, Easy to operate

Machine Type
Double Column Radial Drilling Machine

Motor Power
5 HP main motor

Dimension (L*W*H)
2300 x 1100 x 3250 mm

Diameter
75 mm (maximum drilling diameter in steel)

Condition
New

Frequency
50 Hz

Noise Level
Within permissible industrial limits

Product Type
All Geared Double Column Radial Drilling Machine

Material
Heavy-duty Cast Iron & Steel

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual Gear & Lever Control

Voltage
415 V

Power
5 - 7.5 kW

Power Source
Electric

Weight (kg)
Approx. 5000 kg

Capacity
75 mm drilling in steel

Color
Industrial Blue/Gray as per manufacturer standard

Usage & Applications
Industrial Drilling, Fabrication Shops, Heavy Engineering workshops

Spindle Taper
MT 5

Min Distance Spindle to Column
475 mm

Column Diameter
400 mm

Safety Features
Overload protection, Emergency stop button

Max Distance Spindle to Base
1600 mm

Coolant System
Provided

Feed Range
0.05 to 0.20 mm/rev

Number of Speed/Ranges
12

Max. Spindle Travel
350 mm

Electricals
Standard with control panel

Arm Elevation
Motorized

Min Distance Spindle to Base
400 mm

Base Plate Size
2000 x 950 mm

Oil Lubrication
Integral automatic lubrication system

Max Distance Spindle to Column
1950 mm

Clamping
Mechanical and Hydraulic clamping options available

Arm Length
2000 mm

75mm All geared Double column radial drilling machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit at Sight (Sight L/C)

Supply Ability
10 Pieces Per Month

Delivery Time
1 Months

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About 75mm All geared Double column radial drilling machine

Procure the acclaimed 75mm All Geared Double Column Radial Drilling Machine, a trending masterpiece engineered for towering industrial demands. Renowned for its phenomenal performance, this lavishly designed machine boasts a robust MT5 spindle taper, a generous 2000 mm arm length, and an expansive 1950 mm spindle-to-column range, catering to heavy-duty fabrication, workshops, and engineering arenas. Experience seamless operation with its 12-speed ranges, integral lubrication, and advanced overload protection. Crafted with heavy-duty cast iron & steel, its stability, high precision, and noise control make it the choice of manufacturers, distributors, and exporters across India.

Versatile Precision for Industrial Mastery

The 75mm All Geared Double Column Radial Drilling Machine is purpose-built for both specific and general industrial uses. Engineered to drill up to 75mm diameter in steel, it is widely applicable in fabrication shops, heavy engineering environments, and manufacturing plants. Its phenomenal arm reach and robust build support large jobs, while features like all-geared head, integral coolant, and superior clamping options ensure optimal safety, precision, and reliability in every operation.

Quick Dispatch & Sample Accessibility

Enjoy express shipping and prompt delivery across India when you procure this acclaimed drilling machine. Ready for immediate drop-off, typical delivery times vary from 5 to 15 business days depending on location and order size. For your peace of mind, manufacturer sample options are available, with flexible sample policies to inspect product quality before bulk orders. Depend on our established network for a seamless order-to-installation process.

FAQ's of 75mm All geared Double column radial drilling machine:

Q: How is the 75mm All Geared Double Column Radial Drilling Machine operated?

A: This machine features manual gear and lever control combined with motorized arm elevation, ensuring precise and user-friendly operation for both skilled operators and workshop staff.

Q: What industries commonly use this radial drilling machine?

A: This robust double column radial drilling machine is sought after in fabrication shops, heavy engineering workshops, industrial drilling environments, and manufacturing plants requiring large or heavy-duty drilling jobs.

Q: Where can I get express shipping and what is the typical delivery time?

A: Express shipping with prompt delivery is available across India through our distribution network. Delivery time usually ranges from 5 to 15 business days based on your location and order volume.

Q: What sample policies are offered for this drilling machine?

A: Sample units can be provided upon request, subject to company sample policies. Customers may inspect and assess the machine before placing bulk orders, promoting informed purchasing decisions.

Q: What safety features enhance the use of this machine?

A: The machine is equipped with overload protection, an emergency stop button, and both mechanical and hydraulic clamping options, ensuring operator safety and secure handling during operation.
