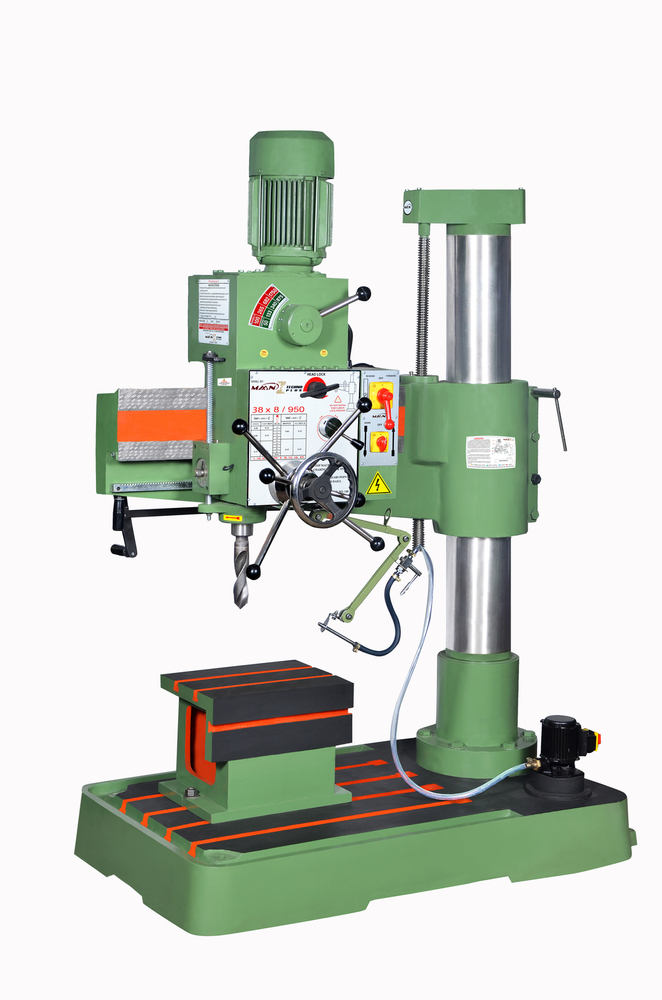

All geared auto feed radial drilling machine

Send Inquiry

Request To Call Back

All geared auto feed radial drilling machine

Name: All geared auto feed radial drilling machine
Brand: MAAN TECHNOPLUS
Price: 250000 INR
Availability: InStock

Price 250000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

All geared auto feed radial drilling machine Specification

Condition
New

Frequency
50 Hz

Features
High Rigidity, All Geared, Auto Feed, Smooth Operation, Heavy Duty

Diameter
Max drilling 50 mm

Cutting Area
Varies with operation; typically up to 50 mm diameter

Noise Level
Low

Spindle Speed
8 Steps, 62 - 2000 rpm

Dimension (L*W*H)
2200 x 900 x 2500 mm

Table Size
500 x 500 mm (Main Table) & 400 x 400 mm (Base Table)

Machine Type
Radial Drilling Machine

Motor Power
2.2-3 kW

Product Type
All Geared Auto Feed Radial Drilling Machine

Material
Cast Iron and Mild Steel

Computerized
No

Automatic Grade
Automatic

CNC Or Not
Not CNC

Control System
Manual & Electrical

Voltage
415 V

Power
3 HP

Power Source
Electric

Weight (kg)
1800 kg

Capacity
Drilling up to 50 mm

Color
Machine Green / Standard

Usage & Applications
Used for Drilling, Boring, Reaming and Tapping in Engineering Industries, Fabrication Shops, Workshops

Base Plate Size
900 x 700 mm

Spindle Auto Feed
Yes

Arm Length
1500 mm

Distance from Spindle to Column (Min/Max)
350 - 1350 mm

Quill Diameter
70 mm

Number of Feed Rates
3

Column Diameter
250 mm

Spindle Taper
MT 4

Main Drive
All Geared

Surface Finish
Fine

Coolant Pump
Inbuilt

Distance from Spindle to Base
1200 mm

Lifting Motor
0.75 HP

Work Table Movement
Manual/Automatic (Depending on model)

Spindle Travel
300 mm

All geared auto feed radial drilling machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Main Domestic Market
All India

About All geared auto feed radial drilling machine

Discover the ace of drilling-our All Geared Auto Feed Radial Drilling Machine is now available at a special Price Cut in our Sale! Highly Recommended for professionals seeking a top-tier, pristine solution for their workshop needs. This heavy-duty machine features a robust 1500 mm arm, 300 mm spindle travel, 3 HP power, and auto-feed spindle for optimum precision. Crafted from durable cast iron and mild steel, it delivers a fine surface finish, low noise operation, and excellent rigidity-perfect for drilling, boring, reaming, and tapping up to 50 mm diameter. Don't miss this opportunity!

Why Our Radial Drilling Machine Leads the Market

The All Geared Auto Feed Radial Drilling Machine stands out with its exceptional build quality, heavy-duty design, and versatile operation modes. Its high rigidity and smooth operation make it suitable for engineering industries, fabrication shops, and workshops, handling drilling, tapping, reaming, and boring tasks with precision. This product offers a significant competitive edge with its automatic grade and multilayer feed rates, ensuring users benefit from both efficiency and durability.

Certifications and Sample Handling Details

Our new arrivals in All Geared Auto Feed Radial Drilling Machines come with certified quality and adherence to industry standards. Sample policies are customer-friendly, with samples available upon request. Once ordered, samples are promptly handed over at the drop-off location or arranged for secure arrival to your site. These certifications and comprehensive sample handling processes underscore our commitment to transparency and customer satisfaction.

FAQ's of All geared auto feed radial drilling machine:

Q: How does the auto feed function improve operational efficiency?

A: The auto feed mechanism streamlines the drilling process, reducing manual intervention and increasing precision, which leads to faster operations and consistent results.

Q: What is the maximum drilling capacity of this machine?

A: This machine has a maximum drilling capacity of up to 50 mm diameter, making it suitable for heavy-duty industrial applications.

Q: When can I expect my sample to be handed over upon request?

A: Samples are typically handed over promptly after your request is processed and logistics are coordinated, ensuring minimal waiting time for evaluation.

Q: Where can this radial drilling machine be used most effectively?

A: It is ideal for engineering industries, fabrication shops, and workshops that require reliable and efficient drilling, boring, reaming, and tapping operations.

Q: What are the primary benefits of an all geared main drive system?

A: An all geared main drive ensures smooth power transmission, low maintenance, and durability, providing stable operation and precise speed control for diverse machining tasks.
