Box Column Drill Machine

Get a Price/Quote

MOQ : 1 Unit

Box Column Drill Machine Specification

Frequency
50 Hz

Features
Rigid box column, high precision spindle, adjustable table, low maintenance

Noise Level
Low

Machine Type
Manual Drilling Machine

Motor Power
0.75 kW

Condition
New

Cutting Area
Varies as per job

Table Size
400 mm x 400 mm

Spindle Speed
70-3220 RPM (Variable)

Diameter
Max. drilling diameter 25 mm

Product Type
Drill Machine

Material
Cast Iron

Computerized
No

Automatic Grade
Semi-Automatic

CNC Or Not
No

Control System
Manual

Voltage
415 Volt (v)

Power
1 HP

Power Source
Electric

Weight (kg)
Approx. 250 kg

Dimension (L*W*H)
920 x 530 x 1700 mm

Capacity
Up to 25 mm in Steel

Color
Blue-Grey

Usage & Applications
Industrial drilling works, workshop and fabrication jobs

Box Column Drill Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
5 Units Per Month

Delivery Time
1 Week

Packaging Details
Gunny Bag, Pallet & Wooden Box.

Main Export Market(s)
Asia, Australia, South America, Eastern Europe, Western Europe, Middle East, Central America, North America, Africa

Main Domestic Market
All India

About Box Column Drill Machine

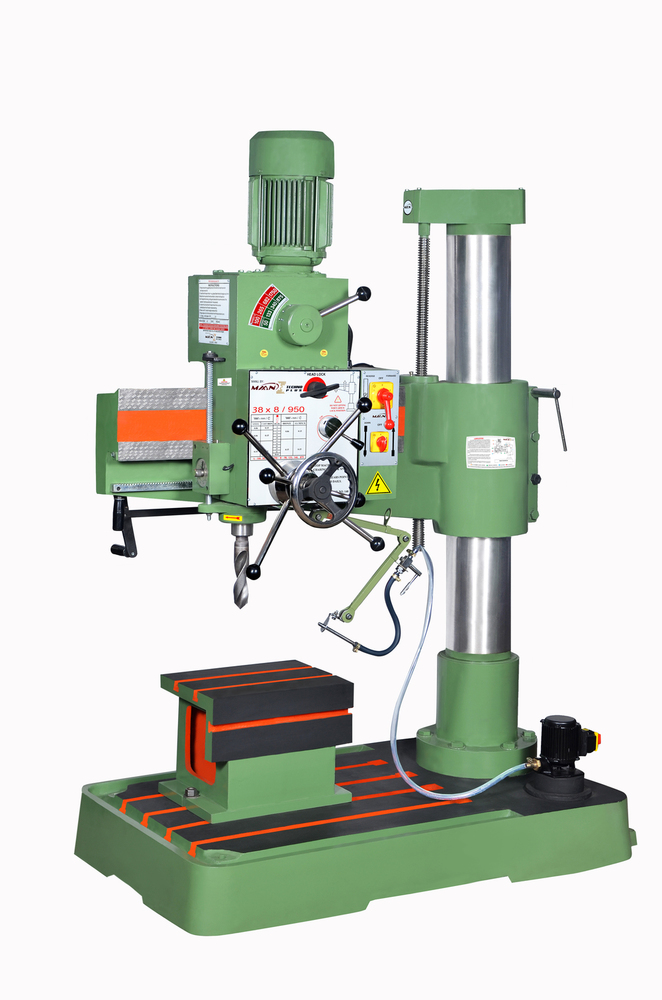

Owing to the dedication of our diligent professionals, we have earned a reputed name as manufacturer & supplier of Box Column Drill Machine. Integrated with an automatic feed system, the radial drill machine has better rigidity as to reduce the vibration during operation. Excellent supports of column bracket, column and arm make the drill machine more accurate and speedy in operation. These Box Column Drill Machine are broadly demanded in several industries such as electrical, automotive, construction, heavy and light engineering industry.

Features

Ensure dimensional and geometric accuracy
In- built coolant tank
Safety limit switches
Wide range of spindle speed

Salient Features of the machine are as under:

Main Spindle is manufactured of "EN8" material.
MT-bore -within grinded.
Offered 8-16 Speeds by precise balancing.
Spindle sleeve-grinded.
By simple alteration in only tapper wedge capacity to establish drill head on column director way.
Work light [ According to requirement]
Box work table [ According to requirement]
Auto Feed from 12/0.10 TO 2mm
Coolant system [ According to prerequisite]
Adaptable depth regulator [with auto stop]
Nitride toughened spindle
Ram is exactly grinded and honing procedure is completed in the bore body covering ram.
All the mechanisms accumulate in the machine are flawlessly sized as per requirement [Precision gears]
All Bearing [FLT & SKF Bearing]
All Electrical fragments are good excellence. [Company: L&T]
Pinion and worm is grinded according to sizes necessity
Square column plan
Accuracy ground alloy gears
Tapping control and spindle reverse
Especially spring sort composed spindle travel
Emergency stop button
Manual/ Auto feed choices
Drilling last size: 2 inch
Heavy Duty constructions
Thick walled and strongly ribbed base plate possessing built-in coolant tank.
Size of T-slots: 4/16MM
Wooden case obtainable on demand

Technical Details:

Drilling Capacity in Solid:
Drilling in Steel	50mm
Drilling in C.I.	60mm
Tapping capacity in steel	35mm
Tapping capacity in C.I.	45mm
General:
Morse taper in spindle	MT - 5
Spindle traverse on vertical	270
Vertical adjustment of spindle head	800
Distance between spindle and upright	510
Number of spindle speeds	8
Range of spindle speeds (rpm)	40-2300 RPM
Number of power feeds	4
Range of feeds (mm/rev)	0.10 - 0.25mm
Power of main motor [two speed]	3 HP, 415V AC, 3 PH 50 Hz
Power of elevating motor	1 HP, 1400 rpm, 415V AC, 3 Ph 50 Hz
Working surface	770 X 640
Distance between base plate to spindle max./min.	1250/300
No. of T Slots	4
Width of T Slots	16
Distance between T slots	100
Box table size [L x W x H]	600 X 500 X 380
Approx Overall size [L X W x H]	1300 X 800 X 2400
Approx Weight	1800 Kg
Wooden Box Packing Dimension: (L x W x H)	1300 x 850 x 2000

Versatile Industrial Applications

The Box Column Drill Machine is tailored for workshops, fabrication units, and industrial drilling operations across India. Its sturdy cast iron construction and sizable working area allow for the processing of varied steel components up to 25 mm diameter, making it suitable for dealers, manufacturers, and retailers alike.

Precision and Ease of Use

Fitted with a high precision spindle and a work table that moves both vertically and rotationally, this machine makes accurate drilling straightforward. The 9 variable spindle speeds (703220 RPM) and adjustable table provide flexibility for different materials, while the ergonomic design ensures user comfort during extended tasks.

Low Maintenance, High Reliability

Designed for minimal upkeep, the machine features a rigid box column and reliable manual control system. Its efficient 1 HP electric motor and low noise output ensure dependable performance and a pleasant working environment. Optional coolant system further enhances tool life for demanding industrial jobs.

FAQs of Box Column Drill Machine:

Q: How does the box column design benefit industrial drilling operations?

A: The rigid box column offers exceptional stability and reduces vibrations, resulting in more accurate and clean holes during drilling operations, especially when working with steel or other tough materials.

Q: What types of jobs or materials is this drill machine suitable for?

A: This drill machine is ideal for industrial workshops, fabrication jobs, and general drilling tasks involving steel components up to 25 mm thick. Its robust build is well-suited for heavy-duty applications and diverse workplace environments.

Q: When is it advisable to request the optional coolant system?

A: The optional coolant system is recommended when performing extended drilling sessions or when working with heat-sensitive materials, as it helps dissipate heat, prolong tool life, and improve drilling precision under demanding conditions.

Q: Where can the machine be installed, and what mounting type does it use?

A: Designed as a floor-standing unit, this machine can be securely installed in factory floors, workshop spaces, or fabrication units, providing a stable base for heavy-duty drilling tasks.

Q: What is the process for adjusting the work table for different operations?

A: The work table can be easily moved up or down, and also rotated, using its adjustable mechanism. This allows users to position the workpiece precisely for various drilling angles and heights, enhancing productivity and versatility.

Q: How does the machine ensure safety and ease of operation?

A: Manual controls and a semi-automatic grade enable straightforward operation, while the stable base, adjustable table, and variable spindle speeds help users maintain control, resulting in safer and more efficient drilling.
